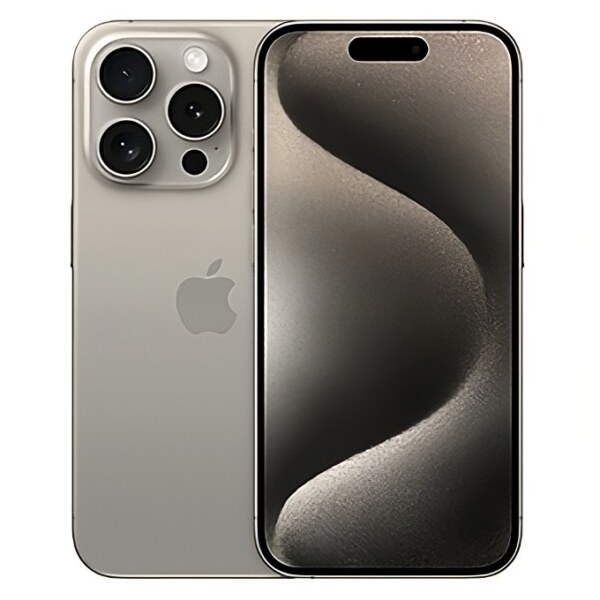

The Apple iPhone 15 Pro Max is the highest and the most expensive model in Apple’s iPhone 15 series. It is also the direct successor to the iPhone 14 Pro Max of 2022, and it comes with some notable upgrades.
First, the model is now powered by Apple’s latest A17 Pro CPU, which is a 3nm SoC with a hexa-core CPU setup. This CPU is integrated with a 6-core Apple GPU, and it is backed by 8GB RAM.
Also, the iPhone 15 series marks the beginning of Apple’s use of USB Type-C interface on its iPhones, instead of the company’s proprietary Lightning USB connector.
And as far as built quality is concerned, the iPhone 15 Pro Max is even tougher than its predecessor, since it comes with a stronger grade 5 titanium frame, up from the stainless still frame that housed the older 14 Pro Max.
But just like its predecessor, the new iPhone 15 Pro Max is given the same 6.7-inch Super Retina OLED display, pushing up to 2000 nits of peak brightness.
It also comes with the same camera setup on the 14 Pro, save for the introduction of a new periscope telephoto lens, capable of up to 5x optical zoom. However, the 48-megapixel main sensor, and the third 12-megapixel ultrawide sensor, including the 12-megapixel selfie sensor are retained,
Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
2G Network Bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 and SIM 2 (dual-SIM) |
3G Network Bands |
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 CDMA2000 1xEV-DO |
4G Network Bands |
All Models: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 53, 66 (A2849, A3105, A3106, A3108) Additional Bands: + 71 (A2849 only) + 11 (A3105 only) + 66 (A3108 only) |
5G Network Bands |
All modes: 1, 2, 3, 5, 7, 8, 12, 20, 25, 26, 28, 29, 30, 38, 40, 41, 48, 66, 70, 77, 78, 79 SA/NSA/Sub6 - (A2849, A3105, A3106, A3108) Additional 5G Bands: - A3108: 14, 258, 260, 261 - A3105: 71, 75, 76 - A2849: mmWave |
Speed | HSPA 42.2/5.76 Mbps, LTE-A (4CA) Cat16 1024/150 Mbps, EV-DO Rev.A 3.1 Mbps |
Also Known As Alternative names for gadgets, as called in other markets or countries |
Apple iPhone 15 Pro Max Models: A2849, A3105, A3106, A3108 |
Announced | 2023, September 11 |
Status | Available. Released 2023, September 22 |
Dimensions | 159.9 x 76.7 x 8.3 mm |
Weight | 221 grams |
Build Build refers to the built quality of the device |
Glass front and back (Ceramic Shield glass) / Grade 5 titanium frame + IP68 dust/water resistant (up to 6m for 30 mins) + Always-On display |
SIM SIM (Subscriber Identity Module) is a small card that contains mobile network subscriber's account information. This allows the phone using the card to attach to a mobile network. The SIM card is most commonly associated with GSM and UMTS mobile networks. Moving a SIM card from one phone to another allows a subscriber to switch mobile phones without having to contact their mobile network carrier. SIM cards can also be used by a phone to store limited amounts of data, such as phone numbers and text messages. |
Dual SIM (Nano-SIM and eSIM) or Dual eSIM - International Dual eSIM with multiple numbers - USA |
Display Type Display Technology => A number of display technologies and types used in mobile phones => TFT (Thin Film Transistor), IPS (In-Place Switching), OLED (Organic Light Emitting Diode), AMOLED (Active-Matrix Organic Light-Emitting Diode), Super AMOLED (an even advanced version of AMOLED), Resistive Touchscreen (Resistive touchscreens contain two layer of conductive material with a very small gap between them which acts as a resistance), Capacitive Touchsceen (Capacitive touchscreen technology consists of a layer of glass coated with a transparent conductor) | LTPO Super Retina XDR OLED Screen / HDR10 / Dolby Vision / 120Hz Refresh / with up to 2000 nits |
Size | 6.7 inches, (89.8% screen-to-body ratio) |
Resolution | 1290 x 2796 pixels, 19.5:9 ratio (460 ppi density) |
Operating System OS => Every computer system run on a base software called Operating System (OS). Operating System controls all basic operations of the computer (such as smartphone, PDAs, tablet computers and other handheld devices). The Operating System allows the user to install and run third party applications (apps), apps are used to add new functionality to the device. | iOS 17 (upgradable) |
Chipset Chipset is a group of integrated circuits designed to perform one or a more dedicated functions, often with real time computing constraints, Popular smartphones are equipped with more advanced embedded chipsets that can do many different tasks depending on their programming. | Apple A17 Pro (3 nm) |
CPU CPU (Central Processing Unit) mostly known as processors, CPU processes instructions in order to carry out certain functions that make your device operate properly. Processors are often described as the brain of computers, smartphones and tablets, Smartphones and tablets rely on processors to carry out their every task, Processors are an incredibly important factor in selecting any type of computing device, including your smartphone. | Hexa-core (2x3.46 GHz Everest + 4x2.02 GHz Sawtooth) |
GPU GPU (Graphics Processing Unit) is a single-chip processor designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display, This includes things such as lighting effects, object transformations, and 3D motion. | Apple GPU (6-core graphics) |
RAM + ROM RAM (Random Access Memory) is a type of computer memory that can be accessed randomly, any byte of memory can be accessed without touching the preceding bytes that allows information to be stored and accessed quickly from random locations. RAM is the most common type of memory found in computer systems, smartphones, tablets and other electronic devices. | 8GB + 256GB / 8GB + 512GB / 8GB + 1TB |
Card Slot Memory Card Slot is a special slot for inserting a memory card. Memory cards allow you to expand the phone's built-in memory, A memory card (sometimes called a flash memory card or a storage card) is a small storage medium used to store data such as text, pictures, audio, and video, for use on small, portable or remote computing devices such as mobile phones, mp3 players, digital cameras. | No |
Camera Type | Triple Lenses |
Camera Sensor(s) |
Main: 48MP, F1.8, Dual Pixel PDAF, sensor-shift OIS Periscope: 12MP, F/2.8, PDAF, Sensor-Shift OIS, 5x optical zoom Ultrawide: 12MP, f/2.2, 120Ëš FoV, dual pixel PDAF, -Depth: TOF 3D LiDAR scanner |
Camera Features | Autofocus / Continuous shooting / Digital zoom / 10-bit HDR / Touch focus / Face detection / Dolby Vision HDR / ProRes, Cinematic mode (4K@24/30fps), 3D (spatial) video, stereo sound rec. / Dual LED flash |
Video Resolution | 4K@24/25/30/60fps, 1080p@25/30/60/120/240fps |
Camera Type | Double Lenses |
Camera Sensor(s) |
Main: 12MP, F/1.9, with OIS SL 3D camera for FaceID and Depth sensing |
Camera Features | HDR / Cinematic video stabilization / Face unlock / gyro-EIS / Cinematic mode |
Video Resolution | 4K@24/25/30/60fps, 1080p@25/30/60/120fps |
Loudspeaker | Yes, Dual digital stereo speakers |
Speaker Location | Chin, below and above display |
Audio Jack Type | No |
Sound Enhancements |
- Active noise cancellation with dedicated mic - Dolby Atmos - Dolby Digital Plus |
USB | USB Type-C 3.0 with Display Port support |
Bluetooth Bluetooth is a wireless communications technology for exchanging data between mobile phones, headsets, computers and other network devices over short distances without wires, Bluetooth technology was primarily designed to support simple wireless networking of personal consumer devices. | Bluetooth 5.3, A2DP, LE |
Wi-fi Wi-Fi is a popular wireless networking technology using radio waves to provide high-speed network connections that allows devices to communicate without cords or cables, Wi-Fi is increasingly becoming the preferred mode of internet connectivity all over the world. | Wi-Fi 802.11 a/b/g/n/ac/6e, dual-band, hotspot |
NFC NFC (Near field communication) is a set of standards for smartphones and similar devices to establish peer-to-peer radio communications with each other by touching them together or bringing them into proximity, usually no more than a few inches. | |
GPS GPS The Global Positioning System is a satellite-based radio navigation system, GPS permits users to determine their position, velocity and the time 24 hours a day, in all weather, anywhere in the world, In order to locate your position, your device or GPS receiver must have a clear view of the sky. | Yes, with A-GPS, GLONASS, GALILEO, BDS, QZSS |
FM Radio | No |
Battery Capacity | Non-removable Li-Ion 3279mAh battery |
Fast Charging |
Yes, 23W Fast battery charging: 50% in 30 min (Wired) USB Power Delivery 2.0 |
Wireless Charging Wireless Charging (Inductive Charging) uses an electromagnetic field to transfer energy between two objects. This is usually done with a charging station. Energy is sent through an inductive coupling to an electrical device, which can then use that energy to charge batteries or run the device. |
Yes, Qi magnetic fast wireless charging 7.5W MagSafe wireless charging 15W |
Sensors Sensors are electronic components that detects and responds to some type of input from the physical environment. The specific input could be light, heat, motion, moisture, pressure and location, The output is generally a signal that is converted to use in computing systems, a location sensor, such as a GPS receiver is able to detect current location of your electronic device. | Face ID, accelerometer, gyro, proximity, compass, barometer, Emergency SOS via satellite (SMS sending/receiving) |
Colors | Blue Titanium, Natural Titanium, Black Titanium, White Titanium |
Java Support Java for Mobile Devices is a set of technologies that let developers deliver applications and services to all types of mobile handsets, ranging from price efficient feature-phones to the latest smartphones. Java is currently running on over 3 billion phones worldwide, and growing. It offers unrivaled potential for the distribution and monetization of mobile applications. | No |
Box Contents What is in the box, What is the box content, What accessories is in the box | iPhone 15 Pro Max / USB cable / User Manual |
