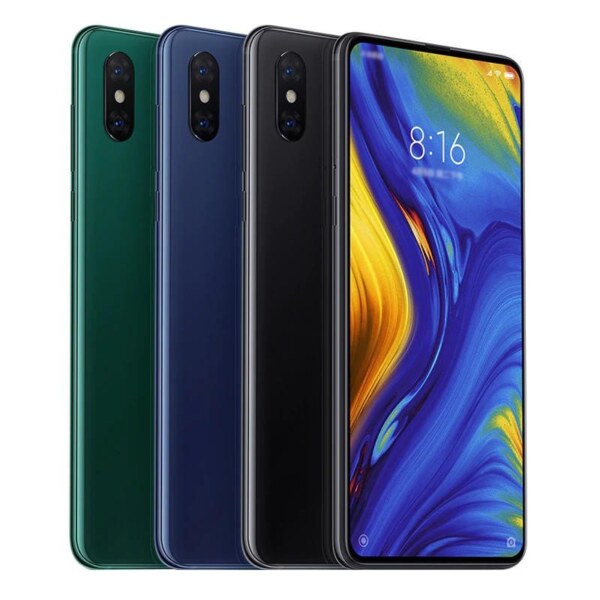

Xiaomi Mi Mix 3 5G
Overview
The Xiaomi Mi Mix 3 5G is the first 5G enabled smartphone from Xiaomi. The device did not only come with support for 5G network modem, but also pack one of the most powerful CPU in the industry. The phone is a lot like the standard Mi Mix 3, however, the Mi Mix 3 still remains top of the range due to the presence of 10GB RAM and 256GB internal storage.
Starting from the display, you getting a large 6.39-inch Full HD+ Super AMOLED display with Corning Gorilla Glass 6 protection, taunting 85.0% screen to body ratio with it 1080 x 2340 pixels resolution display.
Coming to the hardware department, the Xiaomi Mi Mix 3 5G is powered by the same Qualcomm Snapdragon 855 7nm CPU used in the standard version. It come along with Adreno 640 GPU, up to 6GB of RAM, 64/128 GB internal storage and runs Android 9.0 (Pie) with MIUI 10 out of the box.
The camera department consists of a dual rear sensors, comprising of a 12MP wide angle lens, Dual Pixel PDAF, 4-axis OIS and a another 12MP secondary telephoto sensor. Upfront there’s a dual mechanical selfie pop sensor, hosting a 24 + 2 megapixel camera, with support for HDR and a dedicated front facing LED flash.
Other specifications of device includes a rear Fingerprint sensor, dual Nano-SIM with support for the aforementioned 5G Network modem. The device is built into 7000-series aluminium frame with a ceramic back panel.
It packs a 3800mAh battery and has support for 18W fast charging as well as a 10W wireless fast charging. Other specifications and silent features of the Xiaomi Mi 9Xiaomi are detailed in the specification table below.
Full Specifications
NETWORK
| Technology Network technology refers to the specific protocols and standards that devices use to connect and communicate with cellular networks. | GSM / CDMA / HSPA / EVDO / LTE |
| 2G Network Bands 2G network bands are specific radio frequencies used for transmitting voice, texts, and limited data in second-generation mobile networks. |
GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 CDMA 800 / 1900 & TD-SCDMA |
| 3G Network Bands 3G network bands are specific radio frequencies allocated for third-generation mobile networks. |
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 CDMA2000 1xEV-DO |
| 4G Network Bands 4G network bands are specific radio frequencies designated for fourth-generation mobile networks, like LTE (Long-Term Evolution) |
LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 20(800), 28(700), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500) (5G capable) |
| Speed Network speed refers to the rate at which data can be transmitted over a network, typically measured in bits per second (bps), kilobits per second (kbps), megabits per second (Mbps), or gigabits per second (Gbps). | HSPA 42.2/5.76 Mbps, LTE-A (3CA) Cat9 450/50 Mbps, 5G |
LAUNCH
| Also Known As This refers to an alternative name of a device in another market, or the model numbers by which the device is known. |
- - |
BODY
| Dimensions Dimensions typically refers to the measurements or physical size of a device. It includes various aspects such as length, width, height, and sometimes thickness or depth, presented in units like millimeters (mm) or inches (in). | 157.9 x 74.7 x 9.4 mm (6.22 x 2.94 x 0.37 in) |
| Weight Weight refers to the mass or heaviness of a device, usually measured in units like grams (g) or ounces (oz). It indicates how heavy the device is. | 218 g (7.10 oz) |
| Build This refers to the construction, quality, and materials used in manufacturing the product. It encompasses the overall design, durability, robustness, and sometimes the aesthetic appearance of the device. | Back glass (Gorilla Glass 5), aluminum frame (7000 series) |
| SIM Type SIM Type refers to the form or size of the Subscriber Identity Module (SIM) card that a device requires. | Dual SIM (Nano-SIM, dual stand-by) |
DISPLAY
| Display Type Display Type refers to the technology used in the screen of a device. It describes the specific method or technology employed to produce the visual output. | Super AMOLED capacitive touchscreen, 16M colors |
| Size Display size refers to the physical dimensions of the screen on a device, typically measured diagonally in inches or centimeters. It represents the length of the diagonal line from one corner of the screen to the opposite corner. | 6.39 inches, 100.2 cm2 (~85.2% screen-to-body ratio) |
| Resolution Display resolution refers to the number of pixels that a screen can display horizontally and vertically. It's often represented as the total number of pixels in width by height. | 1080 x 2340 pixels, 19.5:9 ratio (~403 ppi density) |
PLATFORM
| Operating System An operating system (OS) is the software that manages a device's hardware and software resources, providing services for programs to run and enabling users to interact with the device. It acts as an intermediary between users and the device hardware, facilitating tasks like file management, memory allocation, and device communication. | Android 9.0 (Pie); MIUI 10 |
| Chipset A chipset is a set of electronic components in a computer or other device that manages data flow between the processor, memory, peripherals, and other hardware components. It serves as a communication hub, coordinating the interactions between different parts of the computer system. | Qualcomm SDM855 Snapdragon 855 (7 nm) |
| CPU The CPU, or Central Processing Unit, is the primary component of a computer responsible for executing instructions from programs. It performs calculations, carries out logical operations, and manages data, acting as the "brain" of the device. | Octa-core (1x2.84 GHz Kryo 485 & 3x2.42 GHz Kryo 485 & 4x1.8 GHz Kryo 485) |
| GPU A GPU, or Graphics Processing Unit, is a specialized electronic circuit designed to accelerate the creation of images on a screen. It's optimized for handling complex graphical computations and rendering, particularly for gaming, video playback, graphical design, and other visually intensive tasks. | Qualcomm Adreno 640 |
MEMORY
| RAM + ROM RAM, or Random Access Memory, is used by the computer's operating system and software to temporarily store data that is actively being used or processed. It's volatile memory, meaning it loses its stored information when the power is turned off. ROM, or Read-Only Memory, is a type of memory that retains its stored data even when the power is turned off. It contains permanent instructions that the computer uses during startup or booting processes. | 6 GB |
| Card Slot A memory card slot is a hardware feature commonly found on various devices such as cameras, smartphones, tablets, and some computers. It's a slot or port designed to accommodate various types of memory cards, including SD (Secure Digital), microSD, CompactFlash, Memory Stick, and others. Users can insert memory cards into these slots to expand storage capacity or transfer data between devices. | Yes, up to 256 GB via microSD card (uses SIM 2 slot) |
MAIN CAMERA
| Camera Type This refers to the camera setup on a device. It could be single, dual, triple, or even more. | Double Lenses |
| Camera Sensor(s) A camera sensor is the electronic component in a digital camera that captures incoming light and converts it into an electronic signal. It's the core element responsible for recording images. | 12 MP + 12 MP main camera |
| Camera Features Camera features encompass a range of functionalities and capabilities offered by a camera, which can vary based on the device's type, model, and intended use. Some common camera features include; Optical Image Stabilization (OIS) High Dynamic Range (OIS), Burst Mode, etc. |
Autofocus Continuous shooting Digital zoom Digital image stabilization Optical image stabilization Geotagging Panorama HDR Touch focus Face detection White balance settings ISO settings Exposure compensation Self-timer Scene mode Sensor size - 1/2.55" Pixel size - 1.4 μm Phase detection with Dual Pixel 4-axis OIS Focal length (35 mm equivalent) - 21 mm 1080p @ 960 fps 720p @ 960 fps Secondary rear camera - 12 MP (telephoto) Sensor model - Samsung S5K3M3 (#2) Sensor type - ISOCELL (#2) Sensor size - 1/3.4" (#2) Pixel size - 1.0 μm (#2) Aperture size - f/2.4 (#2) Focal length (35 mm equivalent) - 26 mm (#2) |
| Video Resolution Video resolution refers to the level of detail in a video image and is typically measured in terms of pixels. It represents the number of distinct pixels that can be displayed in each dimension. Common video resolutions include; HD, FHD, 2K, 4K, and 8K. | 2160p@30/60fps, 1080p@30/120/240fps, 1080p@960fps |
SELFIE CAMERA
| Camera Type This refers to the camera setup on a device. It could be single, dual, triple, or even more. | Double Lenses |
| Camera Sensor(s) A camera sensor is the electronic component in a digital camera that captures incoming light and converts it into an electronic signal. It's the core element responsible for recording images. | 24 MP + 2 MP Mechanical Pop up front-facing camera |
| Camera Features Camera features encompass a range of functionalities and capabilities offered by a camera, which can vary based on the device's type, model, and intended use. Some common camera features include; Optical Image Stabilization (OIS) High Dynamic Range (OIS), Burst Mode, etc. |
Mechanical pop-up dual front camera with neodymium magnets Sensor size - 1/2.8" Pixel size - 1.8 μm (4-in-1 pixel binning) Focal length (35 mm equivalent) - 19 mm Face unlock Secondary front camera - 2 MP Sensor model - OmniVision OV02A10 (#2) Pixel size - 1.75 μm (#2) |
| Video Resolution Video resolution refers to the level of detail in a video image and is typically measured in terms of pixels. It represents the number of distinct pixels that can be displayed in each dimension. Common video resolutions include; HD, FHD, 2K, 4K, and 8K. | 1080p@30fps |
SOUND
| Loudspeaker A loudspeaker is an electroacoustic transducer that converts electrical signals into sound. It consists of various components like a diaphragm, voice coil, magnet, and enclosure. | Yes |
| Speaker Location This simply refers to where the loudspeaker is located on a device. Some common placement includes the rear, basement, sides, and even at the top or within the earpiece grill. | Chin, below display |
| Audio Jack Type Audio jacks come in different types, each with specific sizes and functionalities. Some common ones include a USB-C audio port, a 3.5mm jack, 6.3mm jack. | No. Uses USB Type-C Connector |
| Sound Enhancements |
- Active noise cancellation with dedicated mic - 24-bit/192kHz audio |
CONNECTIVITY
| USB USB stands for Universal Serial Bus, a standard interface used for connecting various devices to a computer or other compatible host device. USB ports come in different shapes and sizes (such as USB-A, USB-B, USB-C) and have evolved over time to offer increased data transfer speeds and power delivery capabilities. | 2.0, Type-C 1.0 reversible connector |
| Bluetooth Bluetooth is a wireless technology standard used for exchanging data over short distances between devices. It enables devices like smartphones, headphones, speakers, keyboards, and other peripherals to communicate and transmit data without the need for physical wired connections. | Bluetooth 5.0, A2DP, LE, aptX HD |
| Wi-fi Wi-Fi is a wireless networking technology that allows devices to connect to the internet and communicate wirelessly within a local area network (LAN). It uses radio waves to transmit data between devices, such as computers, smartphones, tablets, and other devices equipped with Wi-Fi capabilities. | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot |
| NFC NFC stands for Near Field Communication, a short-range wireless technology that enables devices to communicate with each other when they're brought into close proximity, typically within a few centimeters. NFC allows for contactless data exchange between devices, facilitating various functions like contactless payments, data transfer between smartphones or other compatible devices. | |
| GPS GPS stands for Global Positioning System, a satellite-based navigation system that provides location and time information to users anywhere on or near the Earth. It uses a network of satellites orbiting the Earth to accurately determine the precise location of a GPS receiver or device. | Yes, with dual-band A-GPS, GLONASS, BDS, GALILEO, QZSS |
| FM Radio | No |
BATTERY
| Battery Capacity Battery capacity refers to the amount of electrical charge a battery can store, typically measured in milliampere-hours (mAh) or ampere-hours (Ah). It represents the total amount of energy the battery can hold and consequently determines how long a device can operate before requiring recharging. | Non-removable Li-Po 3800 mAh battery |
| Fast Charging Battery fast charging is a technology that enables devices to recharge their batteries at a much quicker rate than traditional charging methods. It's designed to reduce the time required to replenish the battery's charge significantly. | Yes, Fast battery charging 18W (Quick Charge 4+) |
| Wireless Charging Wireless Charging (Inductive Charging) uses an electromagnetic field to transfer energy between two objects. This is usually done with a charging station. Energy is sent through an inductive coupling to an electrical device, which can then use that energy to charge batteries or run the device. | Yes, Fast wireless charging 10W |
| Talk Time Talk Time is the longest time that a single battery charge will last when you are constantly talking on the phone under perfect conditions, Ambient temperature and highly dependent on the cellular network environment such as the distance to the closest cell network tower. | Up to 24 hours |
| Stand-by | Up to 380 hours |
| Music Play | Up to 30 hours |
OTHER FEATURES
| Sensors Smartphones and mobile devices incorporate various sensors that enable them to interact with their environment and provide enhanced functionalities. Some common sensors found in these devices include; an accelerometer, gyroscope, compass, proximity sensor, etc. | Fingerprint (side-mounted), accelerometer, proximity, compass |
| Java Support Java support refers to the compatibility and ability of a device or software platform to run Java-based applications or programs. Java is a widely used programming language known for its platform independence, allowing applications written in Java to run on various devices and operating systems without requiring recompilation. | No |
| Box Contents This refers to items or accessories included in the box of the smartphones. That is items that are available in the box from the device manufacturer. | Charging Brick / USB cable |
