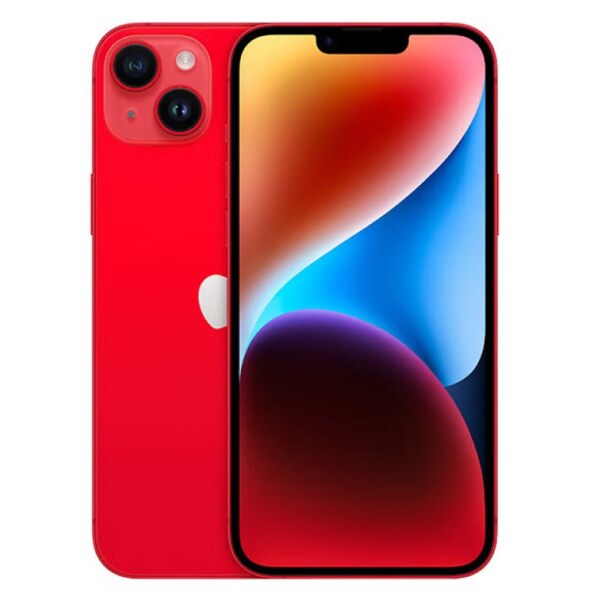

Apple iPhone 14 Plus
Overview
Here is Apple’s iPhone 14 Plus, the larger screen version to the standard iPhone 14. Apple stopped the ‘Plus’ naming scheme since the iPhone 8-series. The company introduced the mini-version with the iPhone 12-series, which was also available in the iPhone 13-series. But this year, Apple decided to ditch the Mini model, and brought an iPhone 14 Plus instead.
The Apple iPhone 14 Plus is a simple elaborated version of the the standard iPhone 14. So instead of the 6.1-inches screen on the vanilla 14, the 14 Plus offers every single specs on the 14, but in a larger 6.7-inches screen.
This also means that the iPhone 14 Plus is got Apple’s A15 Bionic CPU as well as the same camera specification and features as the standard model. These includes a dual 12-megapixel main and ultrawide lenses, coupled with a 12-megapixel selfie camera that is accompanied with an SL 3D depth sensor.
Painting option on the 14 Plus includes Midnight, Purple, Starlight, Blue and Red colors. The phone has Lightning USB 2.0, supports FaceID, Bluetooth 5.3 and offers up to 5G network on it dual SIM option. The complete specifications of Apple iPhone 14 Plus.
Full Specifications
NETWORK
| Technology Network technology refers to the specific protocols and standards that devices use to connect and communicate with cellular networks. | GSM / CDMA / HSPA / EVDO / LTE / 5G |
| 2G Network Bands 2G network bands are specific radio frequencies used for transmitting voice, texts, and limited data in second-generation mobile networks. | GSM 850 / 900 / 1800 / 1900 - SIM 1 and SIM 2 (dual-SIM) |
| 3G Network Bands 3G network bands are specific radio frequencies allocated for third-generation mobile networks. |
HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 CDMA2000 1xEV-DO |
| 4G Network Bands 4G network bands are specific radio frequencies designated for fourth-generation mobile networks, like LTE (Long-Term Evolution) |
All modes: 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 18, 19, 20, 25, 26, 28, 30, 32, 34, 38, 39, 40, 41, 42, 46, 48, 66 Added 4G Bands 11, 14, 21, 29, 71 (A2482 and A2631 only) |
| 5G Network Bands 5G network bands are specific radio frequencies designed for fifth-generation mobile networks, offering significantly faster speeds, reduced latency, and increased network capacity. These bands, such as mmWave (millimeter wave) frequencies and sub-6 GHz frequencies enable advanced connectivity for various applications like IoT, augmented reality, and high-definition streaming across diverse global deployments |
All modes: 1, 2, 3, 5, 7, 8, 12, 20, 25, 28, 29, 30, 38, 40, 41, 48, 66, 71, 77, 78, 79 SA/NSA/Sub6 Added 5G Bands: - 29, 71 (A2633, A2482, A2631 only) - 258, 260, 261 / mmWave (A2482 only) |
| Speed Network speed refers to the rate at which data can be transmitted over a network, typically measured in bits per second (bps), kilobits per second (kbps), megabits per second (Mbps), or gigabits per second (Gbps). | HSPA 42.2/5.76 Mbps, LTE-A (4CA) Cat16 1024/150 Mbps, EV-DO Rev.A 3.1 Mbps |
LAUNCH
| Also Known As This refers to an alternative name of a device in another market, or the model numbers by which the device is known. |
- - |
BODY
| Dimensions Dimensions typically refers to the measurements or physical size of a device. It includes various aspects such as length, width, height, and sometimes thickness or depth, presented in units like millimeters (mm) or inches (in). | 160.8 x 78.1 x 7.8 mm |
| Weight Weight refers to the mass or heaviness of a device, usually measured in units like grams (g) or ounces (oz). It indicates how heavy the device is. | 203 grams |
| Build This refers to the construction, quality, and materials used in manufacturing the product. It encompasses the overall design, durability, robustness, and sometimes the aesthetic appearance of the device. |
Glass front (Gorilla Glass) / Glass back (Gorilla Glass) / Aluminum frame + IP68 dust/water resistant (up to 6m for 30 mins) |
| SIM Type SIM Type refers to the form or size of the Subscriber Identity Module (SIM) card that a device requires. |
Dual SIM (Nano-SIM and eSIM) or Dual eSIM - International Dual eSIM with multiple numbers - USA |
DISPLAY
| Display Type Display Type refers to the technology used in the screen of a device. It describes the specific method or technology employed to produce the visual output. | Super Retina XDR OLED Screen / HDR10 / Dolby Vision / with up to 1200 nits |
| Size Display size refers to the physical dimensions of the screen on a device, typically measured diagonally in inches or centimeters. It represents the length of the diagonal line from one corner of the screen to the opposite corner. | 6.7 inches, (87.4% screen-to-body ratio) |
| Resolution Display resolution refers to the number of pixels that a screen can display horizontally and vertically. It's often represented as the total number of pixels in width by height. | 1284 x 2778 pixels, 19.5:9 ratio (458 ppi density) |
PLATFORM
| Operating System An operating system (OS) is the software that manages a device's hardware and software resources, providing services for programs to run and enabling users to interact with the device. It acts as an intermediary between users and the device hardware, facilitating tasks like file management, memory allocation, and device communication. | iOS 16 (upgradable) |
| Chipset A chipset is a set of electronic components in a computer or other device that manages data flow between the processor, memory, peripherals, and other hardware components. It serves as a communication hub, coordinating the interactions between different parts of the computer system. | Apple A15 Bionic (5 nm) |
| CPU The CPU, or Central Processing Unit, is the primary component of a computer responsible for executing instructions from programs. It performs calculations, carries out logical operations, and manages data, acting as the "brain" of the device. | Hexa-core (2x3.22GHz Avalanche + 4x1.8 GHz Blizzard) |
| GPU A GPU, or Graphics Processing Unit, is a specialized electronic circuit designed to accelerate the creation of images on a screen. It's optimized for handling complex graphical computations and rendering, particularly for gaming, video playback, graphical design, and other visually intensive tasks. | Apple GPU (5-core graphics) |
MEMORY
| RAM + ROM RAM, or Random Access Memory, is used by the computer's operating system and software to temporarily store data that is actively being used or processed. It's volatile memory, meaning it loses its stored information when the power is turned off. ROM, or Read-Only Memory, is a type of memory that retains its stored data even when the power is turned off. It contains permanent instructions that the computer uses during startup or booting processes. | 4GB + 128GB / 4GB + 256GB / 4GB + 512GB |
| Card Slot A memory card slot is a hardware feature commonly found on various devices such as cameras, smartphones, tablets, and some computers. It's a slot or port designed to accommodate various types of memory cards, including SD (Secure Digital), microSD, CompactFlash, Memory Stick, and others. Users can insert memory cards into these slots to expand storage capacity or transfer data between devices. | No |
MAIN CAMERA
| Camera Type This refers to the camera setup on a device. It could be single, dual, triple, or even more. | Double Lenses |
| Camera Sensor(s) A camera sensor is the electronic component in a digital camera that captures incoming light and converts it into an electronic signal. It's the core element responsible for recording images. |
Main: 12MP, F1.5, Dual Pixel PDAF, sensor-shift OIS Ultrawide: 12MP, f/2.4, 120˚ FoV |
| Camera Features Camera features encompass a range of functionalities and capabilities offered by a camera, which can vary based on the device's type, model, and intended use. Some common camera features include; Optical Image Stabilization (OIS) High Dynamic Range (OIS), Burst Mode, etc. | Autofocus / Continuous shooting / Digital zoom / HDR / Touch focus / Face detection / Dolby Vision HDR / Stereo sound rec./ Cinematic mode / Dual LED flash |
| Video Resolution Video resolution refers to the level of detail in a video image and is typically measured in terms of pixels. It represents the number of distinct pixels that can be displayed in each dimension. Common video resolutions include; HD, FHD, 2K, 4K, and 8K. | 4K@24/25/30/60fps, 1080p@25/30/60/120/240fps |
SELFIE CAMERA
| Camera Type This refers to the camera setup on a device. It could be single, dual, triple, or even more. | Double Lenses |
| Camera Sensor(s) A camera sensor is the electronic component in a digital camera that captures incoming light and converts it into an electronic signal. It's the core element responsible for recording images. |
Main: 12MP, F/1.9, SL 3D camera for FaceID and Depth sensing |
| Camera Features Camera features encompass a range of functionalities and capabilities offered by a camera, which can vary based on the device's type, model, and intended use. Some common camera features include; Optical Image Stabilization (OIS) High Dynamic Range (OIS), Burst Mode, etc. | HDR / Cinematic video stabilization / Face unlock / gyro-EIS / Cinematic mode |
| Video Resolution Video resolution refers to the level of detail in a video image and is typically measured in terms of pixels. It represents the number of distinct pixels that can be displayed in each dimension. Common video resolutions include; HD, FHD, 2K, 4K, and 8K. | 4K@24/25/30/60fps, 1080p@25/30/60/120fps |
SOUND
| Loudspeaker A loudspeaker is an electroacoustic transducer that converts electrical signals into sound. It consists of various components like a diaphragm, voice coil, magnet, and enclosure. | Yes, Dual digital stereo speakers |
| Speaker Location This simply refers to where the loudspeaker is located on a device. Some common placement includes the rear, basement, sides, and even at the top or within the earpiece grill. | Chin, below and above display |
| Audio Jack Type Audio jacks come in different types, each with specific sizes and functionalities. Some common ones include a USB-C audio port, a 3.5mm jack, 6.3mm jack. | No |
| Sound Enhancements |
- Active noise cancellation with dedicated mic - Dolby Atmos - Dolby Digital Plus |
CONNECTIVITY
| USB USB stands for Universal Serial Bus, a standard interface used for connecting various devices to a computer or other compatible host device. USB ports come in different shapes and sizes (such as USB-A, USB-B, USB-C) and have evolved over time to offer increased data transfer speeds and power delivery capabilities. | USB 2.0, proprietary reversible connector |
| Bluetooth Bluetooth is a wireless technology standard used for exchanging data over short distances between devices. It enables devices like smartphones, headphones, speakers, keyboards, and other peripherals to communicate and transmit data without the need for physical wired connections. | Bluetooth 5.3, A2DP, LE |
| Wi-fi Wi-Fi is a wireless networking technology that allows devices to connect to the internet and communicate wirelessly within a local area network (LAN). It uses radio waves to transmit data between devices, such as computers, smartphones, tablets, and other devices equipped with Wi-Fi capabilities. | Wi-Fi 802.11 a/b/g/n/ac, dual-band, hotspot |
| NFC NFC stands for Near Field Communication, a short-range wireless technology that enables devices to communicate with each other when they're brought into close proximity, typically within a few centimeters. NFC allows for contactless data exchange between devices, facilitating various functions like contactless payments, data transfer between smartphones or other compatible devices. | |
| GPS GPS stands for Global Positioning System, a satellite-based navigation system that provides location and time information to users anywhere on or near the Earth. It uses a network of satellites orbiting the Earth to accurately determine the precise location of a GPS receiver or device. | Yes, with A-GPS, GLONASS, GALILEO, BDS, QZSS |
| FM Radio | No |
BATTERY
| Battery Capacity Battery capacity refers to the amount of electrical charge a battery can store, typically measured in milliampere-hours (mAh) or ampere-hours (Ah). It represents the total amount of energy the battery can hold and consequently determines how long a device can operate before requiring recharging. | Non-removable Li-Ion 4323mAh battery |
| Fast Charging Battery fast charging is a technology that enables devices to recharge their batteries at a much quicker rate than traditional charging methods. It's designed to reduce the time required to replenish the battery's charge significantly. |
Yes, 27W Fast battery charging: 50% in 30 min (Wired) USB Power Delivery 2.0 |
| Wireless Charging Wireless Charging (Inductive Charging) uses an electromagnetic field to transfer energy between two objects. This is usually done with a charging station. Energy is sent through an inductive coupling to an electrical device, which can then use that energy to charge batteries or run the device. |
Yes, Qi magnetic fast wireless charging 7.5W MagSafe wireless charging 15W |
OTHER FEATURES
| Sensors Smartphones and mobile devices incorporate various sensors that enable them to interact with their environment and provide enhanced functionalities. Some common sensors found in these devices include; an accelerometer, gyroscope, compass, proximity sensor, etc. | Fingerprint (side-mounted), accelerometer, proximity, compass |
| Java Support Java support refers to the compatibility and ability of a device or software platform to run Java-based applications or programs. Java is a widely used programming language known for its platform independence, allowing applications written in Java to run on various devices and operating systems without requiring recompilation. | No |
| Box Contents This refers to items or accessories included in the box of the smartphones. That is items that are available in the box from the device manufacturer. | Charging Brick / USB cable |
